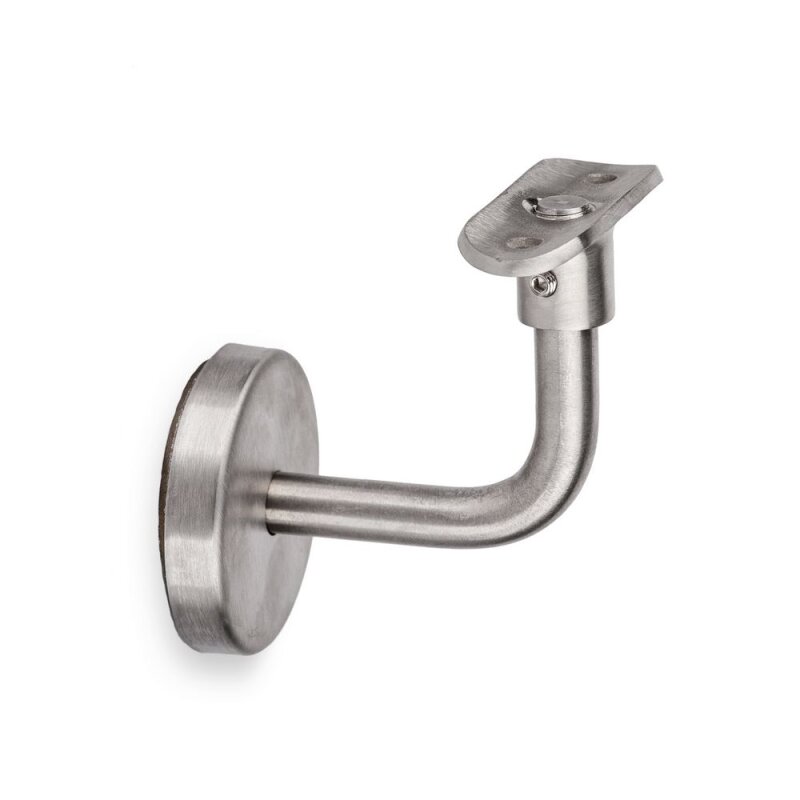

Picture: Handrail holder stainless steel with base plate

SKU: 4119
GTIN: 4260699642585

16,75 €

incl. 19% VAT , plus

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Description
Reviews

Description:

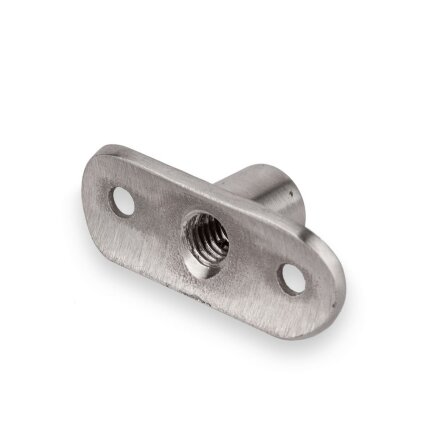

Handrail holder stainless steel to screw in.
With 12mm thread and round cover chain.

Suitable for round and straight handrail support surfaces.

Fastening :

- Wall side with 6 different drilling variants.
Cover stainless steel Rossette, is only lightly pressed on,
last very good.

Assembly:

Drill with a 10mm wood drill approx. 2,50cm deep blind hole.
Then with 12mm metric metal taps ( size 1 and 2 )
Cut a thread into the hole.

The connection is very stable and is often used in the commercial sector.

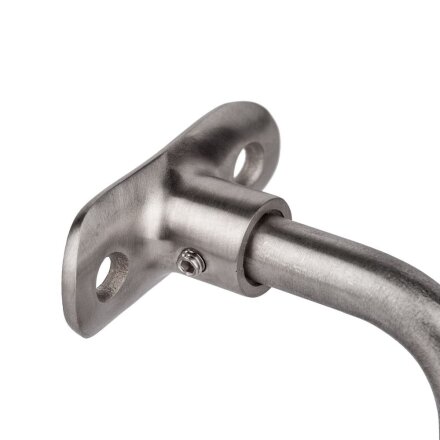

The support shell is screwed onto the existing thread and fixed with a grub screw.

Holder size:

wall distance approx. 70mm
diameter of blank approx. 55mm
Height of the arc from the middle of the blank approx. 65mm
cover height 10mm therefore also greener screws can be used
The six bores in the blank have a diameter of 8.2mm.
Thread M12 Thread length approx. 20mm

Delivery:

Decrease of larger quantities of handrail holders - please inquire.
(This may change the delivery times.)

Let us make you an offer without obligation.
